DMAc GPC

We promise to support our clients with various organic/inorganic material R&Ds with utmost sincerity.

KOPTRI provides GPC (Gel Permeation Chromatography) service with DMAc (N,N-Dimethylacetamide).

If the polymer does not dissolve in DMF, higher solubility solvent such as DMAc is utilized. Same as DMF, we use salts such as LiBr or LiCl to elute polymer more effectively. If you need help with analysis, please send us a request by submitting ‘Application Form’ under ‘Contact Us’ tab, and supervising researcher will aid you with a punctual and meticulous reply.

DMAc GPC setup

※ Use left and right scroll for tables

Polymers MW range Temperature Standard Detector
Polyurethane
Polyamic acid
162 ~
1,000,000 Da
50 ℃ PS
PMMA
PEG/PEO
RI

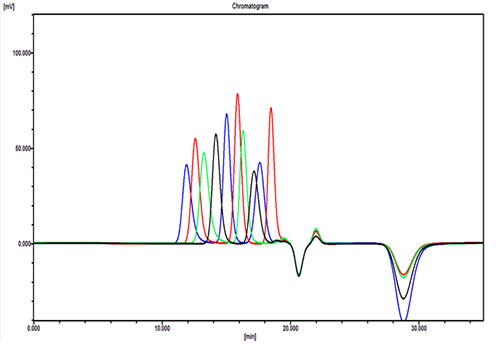

DMAc GPC Chromatogram of Polystyrene standards

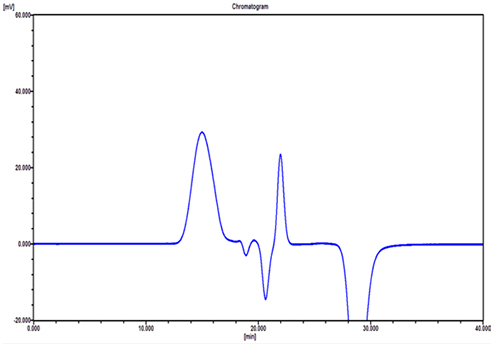

DMAc GPC Chromatogram of Cellulose acetate

  • Instrument : EcoSEC HLC-8320 GPC
  • Column (maker, model no.): Tskgel guardcolumn α + TSKgel α-M
  • Eluent : DMAc + 0.05M LiBr
  • Temperature : 50 ℃
  • Flow rate : 0.5 mL/min
  • Injection volume, sample concentration : 50 ㎕, 3 mg/mL
  • Standard : Polystyrene
  • Detector : RI
